| SHIM SCREW |
|---|
 |
|---|
| SHIM SCREW PHOTO'S |
|---|

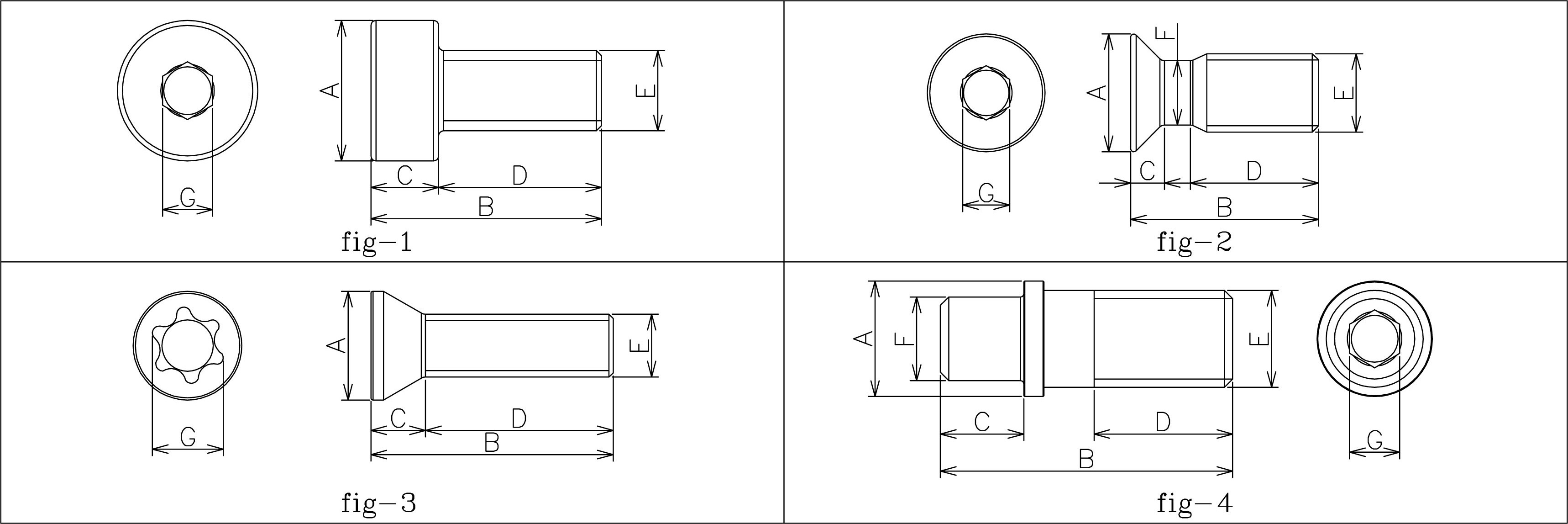

| SL.NO | NAME | A | B | C | D | E | F | G | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | A16 | 5.60 | 9.20 | 2.70 | 6.50 | 1/8X4D BSW | --- | LH020 | fig-1 |
| 2 | MDS03 | 7.50 | 12.00 | 2.15 | 8.00 | M5 X 0.8 | 4.10 | LH030 | fig-2 |
| 3 | MDS07 | 10.80 | 16.00 | 3.80 | 10.40 | M8 X 1.25 | 6.70 | LH050 | fig-2 |
| 4 | MDS13 | 5.20 | 11.60 | 2.70 | 8.90 | M3.5 X 0.9 | --- | FT15 | fig-3 |
| 5 | MSP08 | 6.90 | 17.50 | 5.00 | 8.30 | M6 X 1.0 | 5.00 | LH030 | fig-4 |
| 6 | MSP08B | 6.90 | 15.30 | 4.30 | 7.90 | M6 X 1.0 | 5.00 | LH030 | fig-4 |
| 7 | MSP09 | 5.90 | 16.80 | 4.00 | 8.50 | M5 X 0.8 | 3.60 | LH025 | fig-4 |
| 8 | MSP09B | 6.00 | 12.20 | 4.60 | 5.15 | M5 X 0.8 | 3.60 | LH025 | fig-4 |
| 9 | MSP13 | 6.00 | 12.20 | 4.60 | 5.15 | M5 X 0.8 | 3.60 | LH025 | fig-4 |
| 10 | RTS09 | 6.50 | 19.00 | 3.60 | 6.40 | M5 X 0.8 | 3.60 | LH025 | fig-4 |
