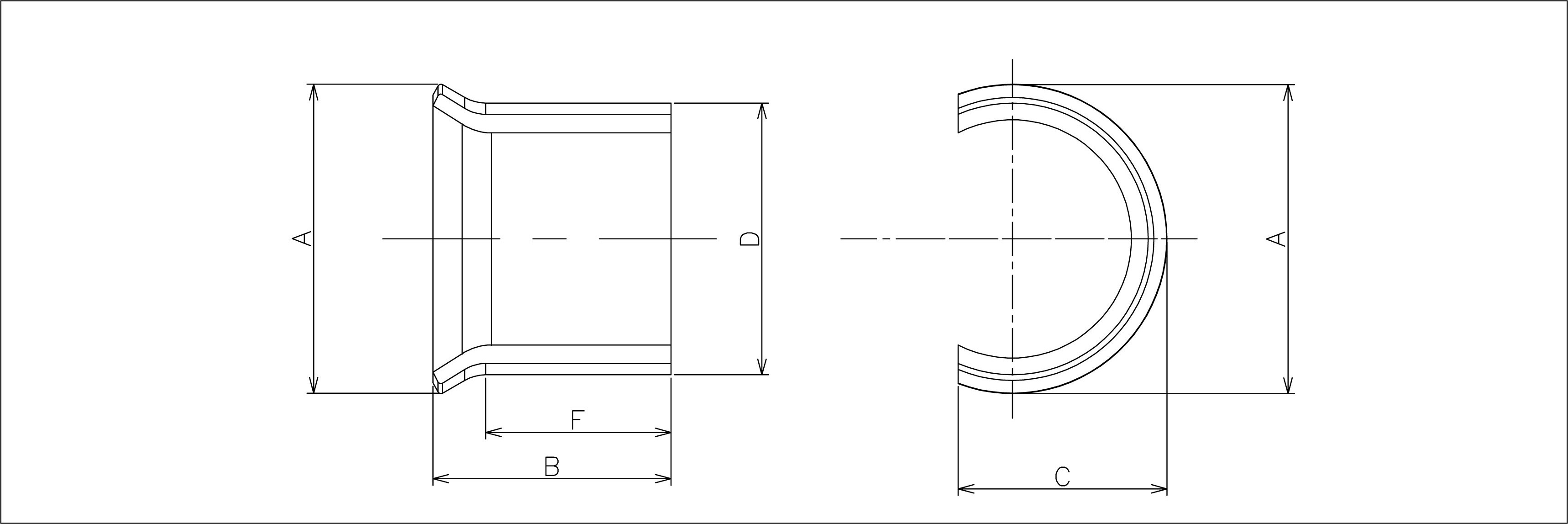

| SHIM PIN |
|---|
| SL.NO | NAME | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|

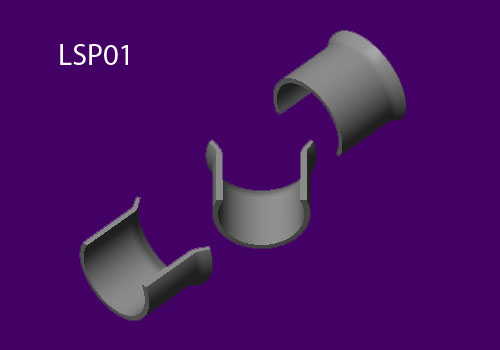

| 1 | LSP01 | 7.40 | 5.70 | 4.55 | 6.50 | --- | 4.40 | --- |

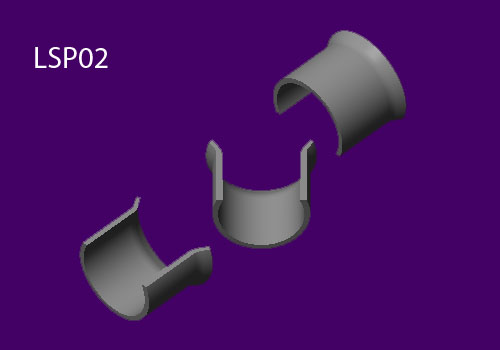

| 2 | LSP02 | 11.20 | 10.25 | 5.13 | 9.45 | --- | 8.25 | --- |

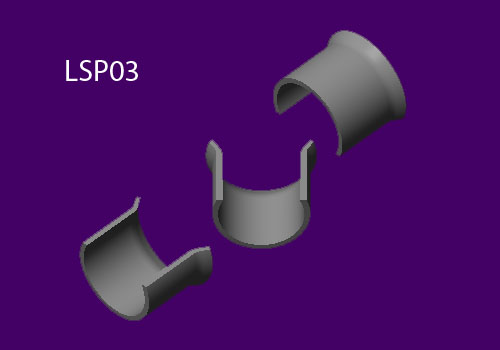

| 3 | LSP03 | 5.90 | 5.00 | 3.05 | 5.00 | --- | 4.00 | --- |
 |
 |
 |
|---|
