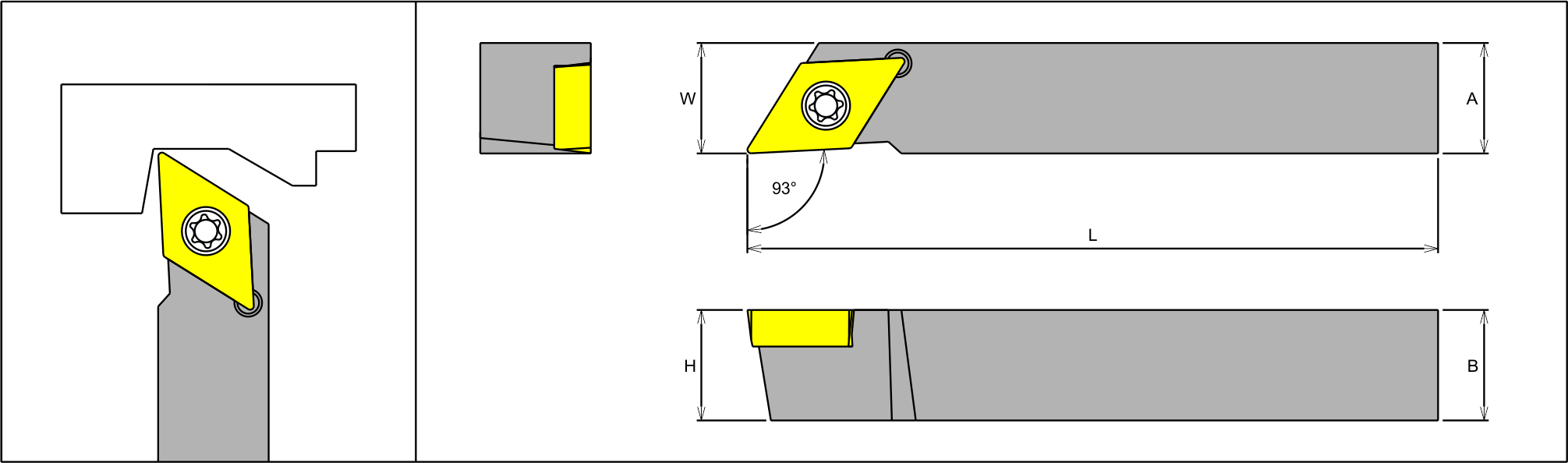

| SDJCR/L-N Screw Lock TOOL HOLDER |
|---|
| SL.NO | DESCRIPTION | A | B | L | W | H | INSERT | SCREW | KEY |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SDJCR/L 1010 H07N | 10 | 10 | 100 | 10 | 10 | DCMT0702-- | TS2506 | FT08 |
| 2 | SDJCR/L 1212 K07N | 12 | 12 | 125 | 12 | 12 | DCMT0702-- | TS2506 | FT08 |
| 3 | SDJCR/L 1212 K11N | 12 | 12 | 125 | 12 | 12 | DCMT11T3-- | TS3509 | FT15 |
| 4 | SDJCR/L 1616 K11N | 16 | 16 | 125 | 16 | 16 | DCMT11T3-- | TS3509 | FT15 |
