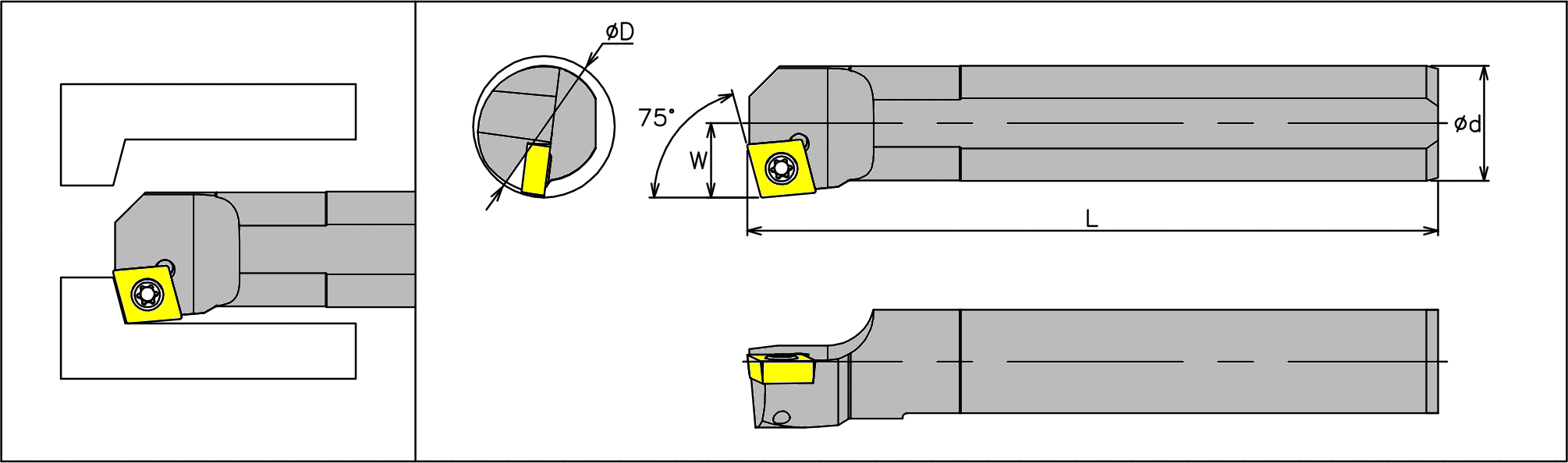

SCKCR / L Screw Lock BORINGBAR
|
SL.NO |
DESCRIPTION |
D |
d |
W |
L |
INSERT |
SCREW |
KEY |
1 |
S08H SCKCR/L 06 |
10 |
8 |
5 |
100 |
CCMT0602-- |
TS2506 |
FT08 |
2 |
S10K SCKCR/L 06 |
13 |
10 |
7 |
125 |
CCMT0602-- |
TS2506 |
FT08 |
3 |
S12M SCKCR/L 06 |
16 |
12 |
9 |
150 |
CCMT0602-- |
TS2506 |
FT08 |
4 |
S12M SCKCR/L 09 |
16 |
12 |
9 |
150 |
CCMT09T3-- |
TS3509 |
FT15 |
5 |
S16Q SCKCR/L 06 |
20 |
16 |
11 |
180 |
CCMT0602-- |
TS2506 |
FT08 |
6 |
S16Q SCKCR/L 09 |
20 |
16 |
11 |
180 |
CCMT09T3-- |
TS3509 |
FT15 |
7 |
S20R SCKCR/L 06 |
25 |
20 |
13 |
200 |
CCMT0602-- |
TS2506 |
FT08 |
8 |
S20R SCKCR/L 09 |
25 |
20 |
13 |
200 |
CCMT09T3-- |
TS3509 |
FT15 |
9 |
S25R SCKCR/L 09 |
32 |
25 |
17 |
200 |
CCMT09T3-- |
TS3509 |
FT15 |
|
