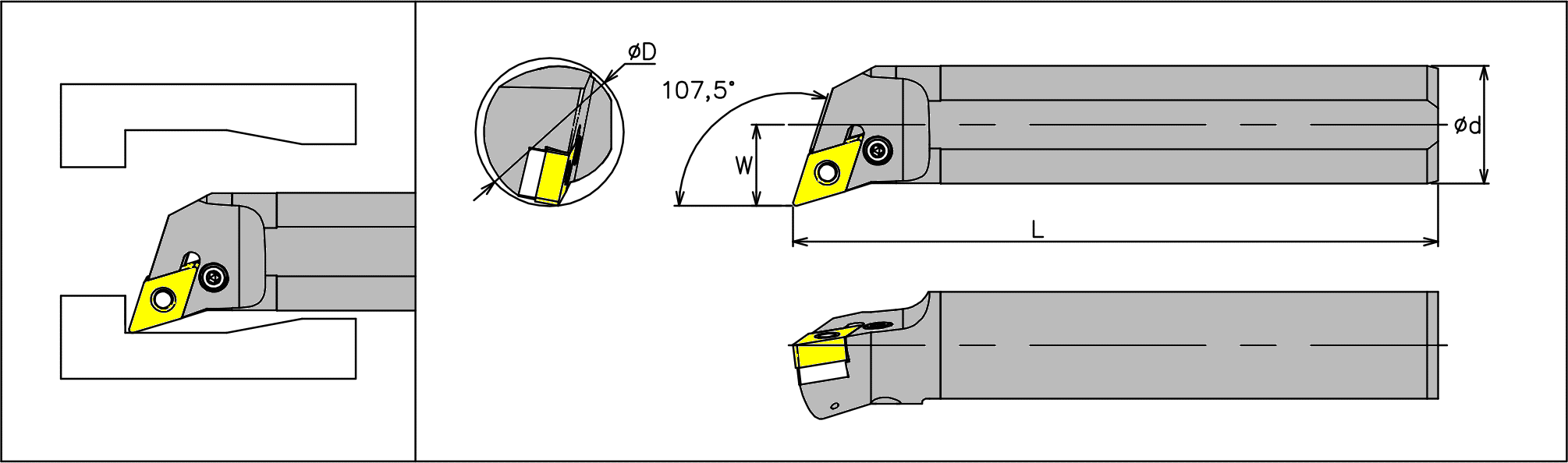

| PDQNR/L Lever Lock BORINGBAR |
|---|
 |
|---|
| SL.NO | DESCRIPTION | D | d | W | L | INSERT | SHIM | PIN | LEVER | SCREW | KEY |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | S25R PDQNR/L 11 | 32 | 25 | 17 | 200 | DNMG1104-- | LSD19 | LSP03 | LCL04 | LCS04 | LH025 |
| 2 | S32S PDQNR/L 11 | 40 | 32 | 22 | 250 | DNMG1104-- | LSD19 | LSP03 | LCL04 | LCS04 | LH025 |
| 3 | S40U PDQNR/L 11 | 50 | 40 | 27 | 350 | DNMG1104-- | LSD19 | LSP03 | LCL04 | LCS04 | LH025 |
| 4 | S32S PDQNR/L 15 | 40 | 32 | 22 | 250 | DNMG1506-- | LSD20 | LSP01 | LCL07 | LCS07 | LH030 |
| 5 | S40U PDQNR/L 15 | 50 | 40 | 27 | 350 | DNMG1506-- | LSD20 | LSP01 | LCL07 | LCS07 | LH030 |
| 6 | S50V PDQNR/L 15 | 63 | 50 | 35 | 400 | DNMG1506-- | LSD20 | LSP01 | LCL07 | LCS07 | LH030 |
