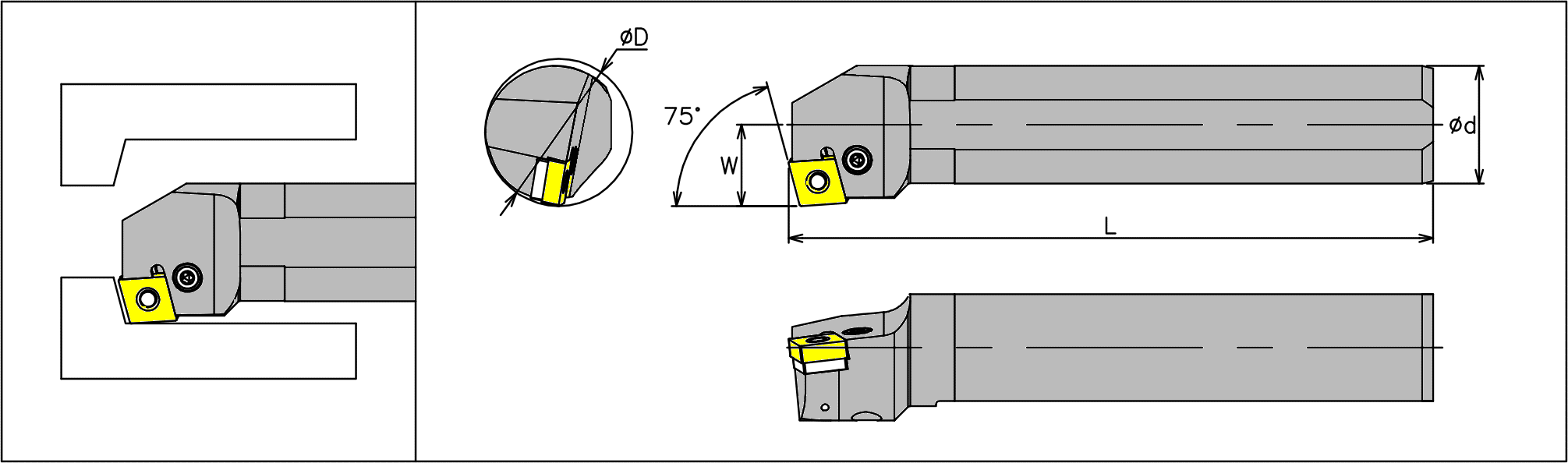

PCKNR/L Lever Lock BORINGBAR |
SL.NO |
DESCRIPTION |
D |
d |
W |
L |
INSERT |
SHIM |
PIN |
LEVER |
SCREW |
KEY |
1 |
S16Q PCKNR/L 09 |
20 |
16 |
11 |
180 |
CNMG0903-- |
- |
- |
LCL02 |
LCS02 |
LH025 |
2 |
S20R PCKNR/L 09 |
25 |
20 |
13 |
200 |
CNMG0903-- |
- |
- |
LCL02 |
LCS02 |
LH025 |
3 |
S20R PCKNR/L 12 |
25 |
20 |
13 |
200 |
CNMG1204-- |
- |
- |
LCL08 |
LCS08 |
LH030 |
4 |
S25R PCKNR/L 12 |
32 |
25 |
17 |
200 |
CNMG1204-- |
- |
- |
LCL08 |
LCS08 |
LH030 |
5 |
S32S PCKNR/L 12 |
40 |
32 |
22 |
250 |
CNMG1204-- |
LSC08 |
LSP01 |
LCL06 |
LCS06 |
LH030 |
6 |
S40U PCKNR/L 12 |
50 |
40 |
27 |
350 |
CNMG1204-- |
LSC08 |
LSP01 |
LCL06 |
LCS06 |
LH030 |
7 |
S40U PCKNR/L 19 |
50 |
40 |
27 |
350 |
CNMG1906-- |
LSC09 |
LSP02 |
LCL09 |
LCS09 |
LH040 |
8 |
S50V PCKNR/L 19 |
63 |
50 |
35 |
400 |
CNMG1906-- |
LSC09 |
LSP02 |
LCL09 |
LCS09 |
LH040 |
|
