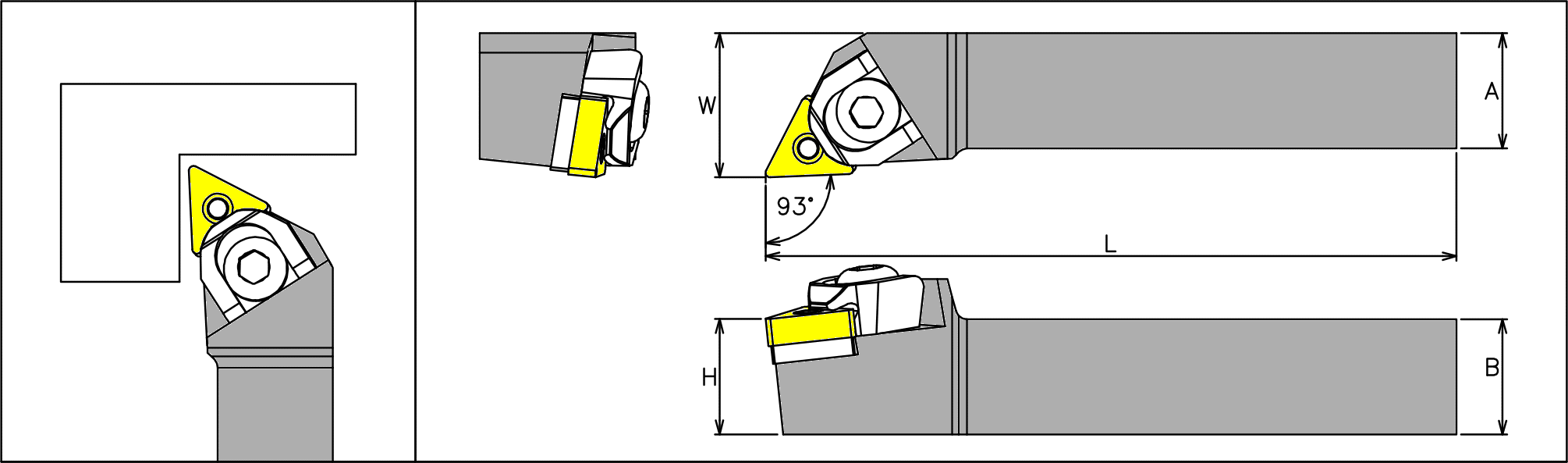

| MTJNR/L Wedge Lock TOOL HOLDER |
|---|
 |
|---|
| SL.NO | DESCRIPTION | A | B | L | W | H | INSERT | SHIM | S.SCREW | CLAMP | C.SCREW | KEY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | MTJNR/L 1616 H16 | 16 | 16 | 100 | 22 | 16 | TNMG1604-- | WST02 | MSP09 | WCT02 | CLS01 | LH030/LH025 |
| 2 | MTJNR/L 2020 K16 | 20 | 20 | 125 | 25 | 20 | TNMG1604-- | WST02 | MSP09 | WCT02 | CLS01 | LH030/LH025 |
| 3 | MTJNR/L 2525 M16 | 25 | 25 | 150 | 32 | 25 | TNMG1604-- | WST02 | MSP09 | WCT02 | CLS01 | LH030/LH025 |
| 4 | MTJNR/L 3232 P16 | 32 | 32 | 170 | 40 | 32 | TNMG1604-- | WST02 | MSP09 | WCT02 | CLS01 | LH030/LH025 |
