| LEVER SCREW |
|---|
 |
|---|
| LEVER SCREW PHOTO'S |
|---|

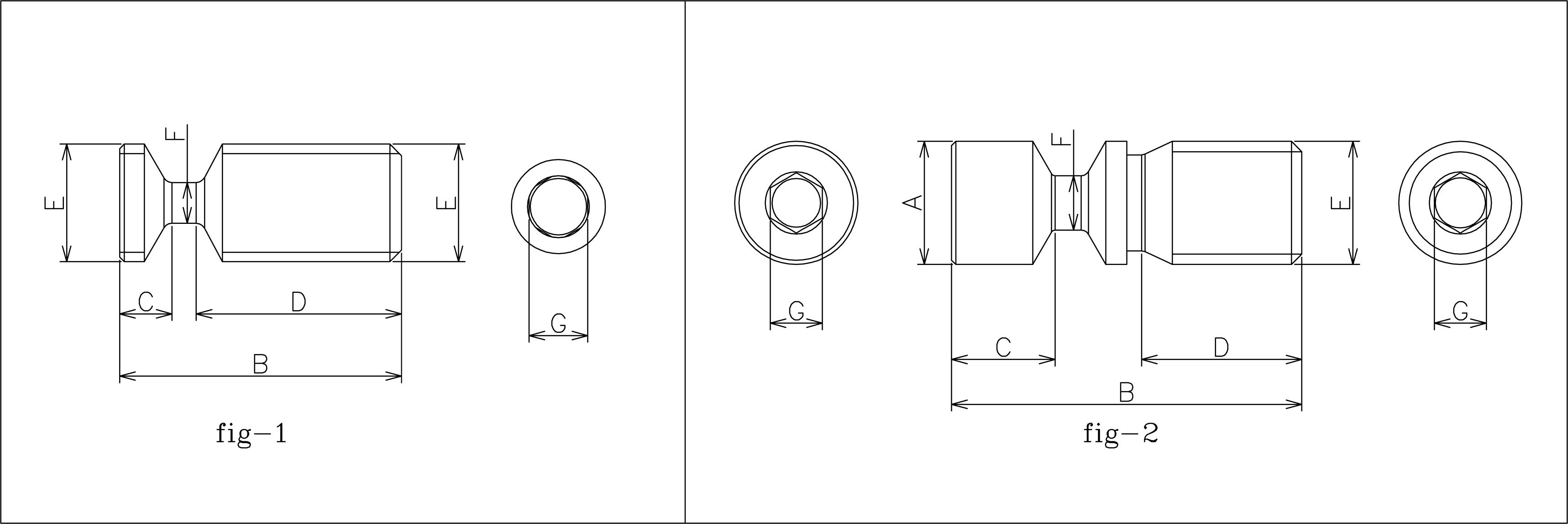

| SL.NO | NAME | A | B | C | D | E | F | G | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | LCS02 | --- | 12.00 | 2.00 | 8.50 | M5 X 0.8 | 1.73 | LH025 | fig-1 |
| 2 | LCS03 | --- | 12.00 | 2.00 | 8.50 | M5 X 0.8 | 1.73 | LH025 | fig-1 |
| 3 | LCS08 | --- | 15.00 | 3.50 | 8.50 | M6 X 1.0 | 2.50 | LH030 | fig-1 |
| 4 | LCS04 | 5.90 | 16.80 | 5.00 | 7.60 | M6 X 1.0 | 2.60 | LH025 | fig-2 |
| 5 | LCS05 | 5.90 | 16.80 | 5.00 | 7.60 | M6 X 1.0 | 2.60 | LH025 | fig-2 |
| 6 | LCS06 | 7.90 | 18.00 | 4.10 | 8.30 | M8 X 1.0 | 3.70 | LH030 | fig-2 |
| 7 | LCS07 | 7.90 | 23.00 | 7.25 | 10.30 | M8 X 1.0 | 3.70 | LH030 | fig-2 |
| 8 | LCS09 | 9.80 | 30.00 | 11.70 | 12.00 | M10 X 1.0 | 4.50 | LH040 | fig-2 |
