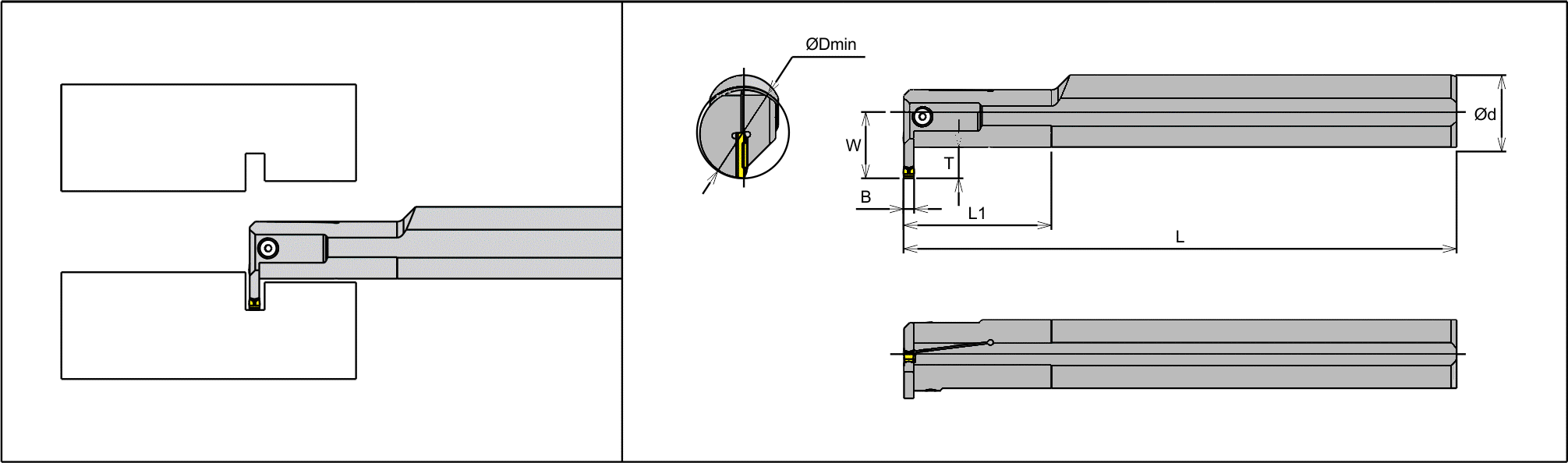

| INTERNAL GROOVING |
|---|
 |
|---|
| Note: We can suit ISO insert make like also Korloy,Taegutec,Kyocera,Iscar(Grip,Gipi,Gepi,Tgmf). |
|---|
| SL.NO | DESCRIPTION | d | W | L | Dmin | B | T | L1 | SCREW | KEY |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | S20M IG--R/L 205 | 20 | 15 | 150 | 26 | 2 | 5 | 25 | M5X0.8X12 | LH040 |
| 2 | S20M IG--R/L 307 | 20 | 17 | 150 | 28 | 3 | 7 | 40 | M5X0.8X16 | LH040 |
| 3 | S25R IG--R/L 310 | 25 | 22.5 | 200 | 32 | 3 | 10 | 50 | M5X0.8X20 | LH040 |
| 4 | S32S IG--R/L 312 | 32 | 28 | 250 | 40 | 3 | 12 | 64 | M6X1.0X20 | LH040 |
| 5 | S20M IG--R/L 407 | 20 | 17 | 150 | 28 | 4 | 7 | 40 | M5X0.8X16 | LH040 |
| 6 | S25R IG--R/L 410 | 25 | 22.5 | 200 | 32 | 4 | 10 | 50 | M5X0.8X20 | LH040 |
| 7 | S32S IG--R/L 412 | 32 | 28 | 250 | 40 | 4 | 12 | 64 | M6X1.0X20 | LH050 |
| 8 | S40T IG--R/L 416 | 40 | 36 | 300 | 52 | 4 | 16 | 80 | M6X1.0X20 | LH050 |
| 9 | S32S IG--R/L 516 | 32 | 32 | 250 | 44 | 5 | 16 | 64 | M6X1.0X20 | LH050 |
| 10 | S40T IG--R/L 516 | 40 | 36 | 300 | 52 | 5 | 16 | 80 | M6X1.0X20 | LH050 |
| 11 | S40T IG--R/L 616 | 40 | 36 | 300 | 52 | 6 | 16 | 80 | M6X1.0X20 | LH050 |
