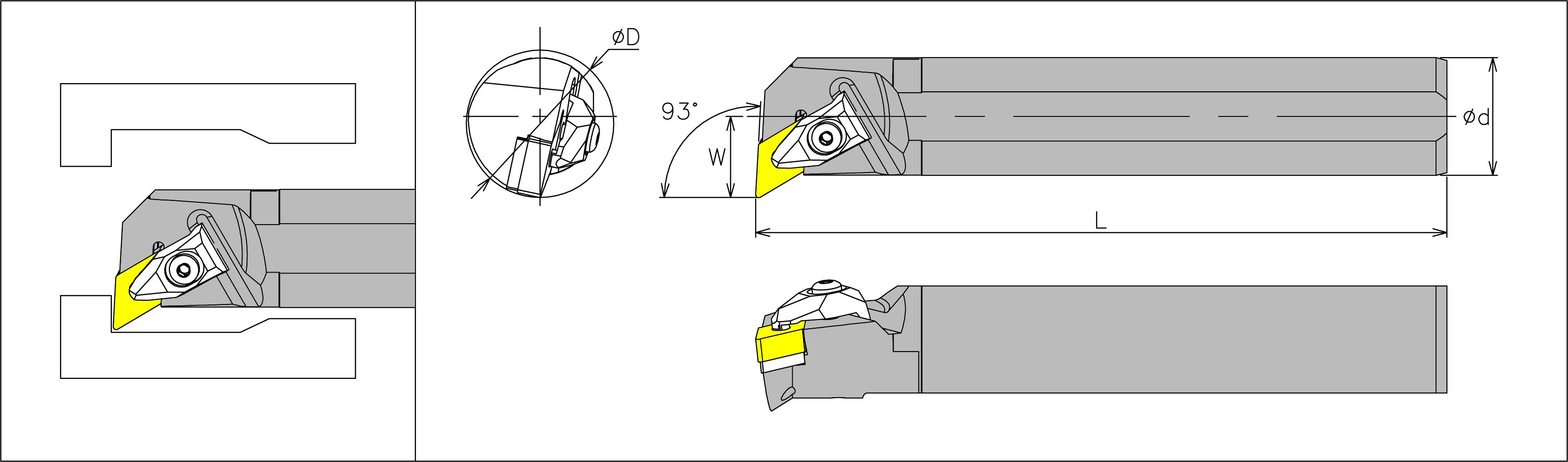

| DDUNR/L CLAMP Lock D TYPE BORING BAR |
|---|
 |
|---|
| SL.NO | DESCRIPTION | D | d | W | L | INSERT | SHIM | S.SCREW | CLAMP | C.SCREW | SPRING | KEY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | S25R DDUNR/L 11 | 32 | 25 | 17 | 200 | DNMG1104-- | LSD19 | MDS13 | DCD16 | CLS11 | DSG05 | LH025/FT15 |
| 2 | S32S DDUNR/L 15 | 40 | 32 | 22 | 250 | DNMG1506-- | LSD20 | MDS03 | DCD08 | CLS05 | DSG02 | LH030 |
| 3 | S40U DDUNR/L 15 | 50 | 40 | 27 | 350 | DNMG1506-- | LSD20 | MDS03 | DCD08 | CLS05 | DSG02 | LH030 |
| 4 | S50V DDUNR/L 15 | 63 | 50 | 35 | 400 | DNMG1506-- | LSD20 | MDS03 | DCD08 | CLS05 | DSG02 | LH030 |
