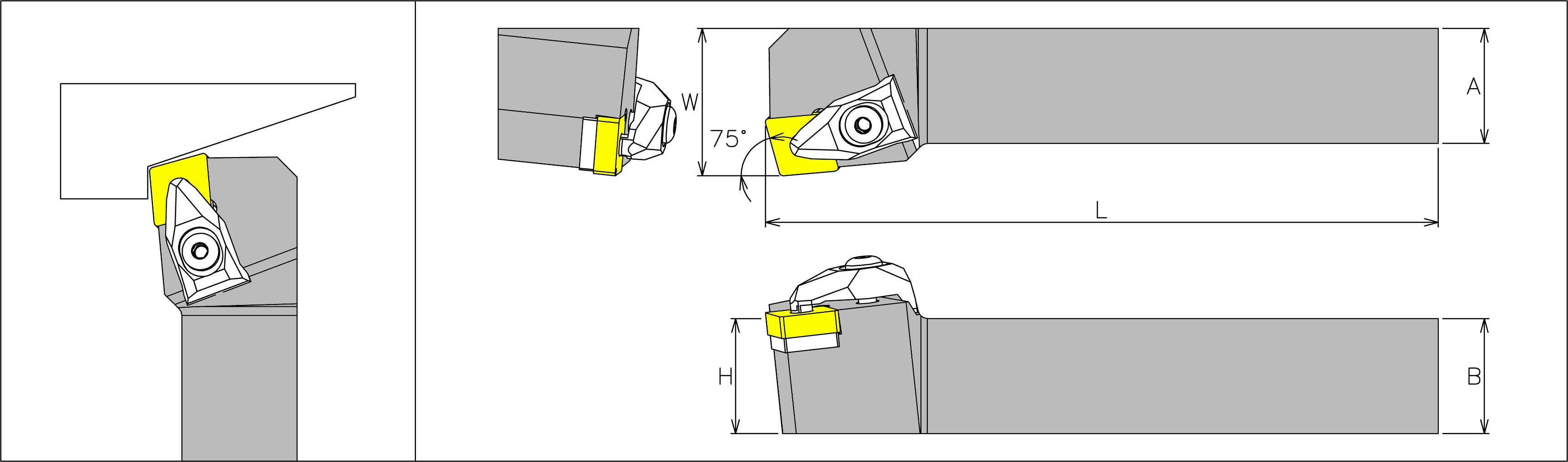

| DCKNR/L CLAMP Lock D TYPE TOOLHOLDER |
|---|
 |
|---|
| SL.NO | DESCRIPTION | A | B | L | W | H | INSERT | SHIM | S.SCREW | CLAMP | C.SCREW | SPRING | KEY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | DCKNR/L 2020 K12 | 20 | 20 | 125 | 25 | 20 | CNMG1204-- | LSC08 | MDS03 | DCD08 | CLS05 | DSG02 | LH030 |
| 2 | DCKNR/L 2525 M12 | 25 | 25 | 150 | 32 | 25 | CNMG1204-- | LSC08 | MDS03 | DCD08 | CLS05 | DSG02 | LH030 |
| 3 | DCKNR/L 3232 P12 | 32 | 32 | 170 | 40 | 32 | CNMG1204-- | LSC08 | MDS03 | DCD08 | CLS05 | DSG02 | LH030 |
| 4 | DCKNR/L 4040 R12 | 40 | 40 | 200 | 50 | 40 | CNMG1204-- | LSC08 | MDS03 | DCD08 | CLS05 | DSG02 | LH030 |
| 5 | DCKNR/L 3232 P19 | 32 | 32 | 170 | 40 | 32 | CNMG1906-- | LSC09 | MDS07 | DCD15 | CLS10 | DSG03 | LH040/LH050 |
| 6 | DCKNR/L 4040 R19 | 40 | 40 | 200 | 50 | 40 | CNMG1906-- | LSC09 | MDS07 | DCD15 | CLS10 | DSG03 | LH040/LH050 |
