| CLAMP SCREW |
|---|
 |
|---|
| CLAMP SCREW PHOTO'S |
|---|

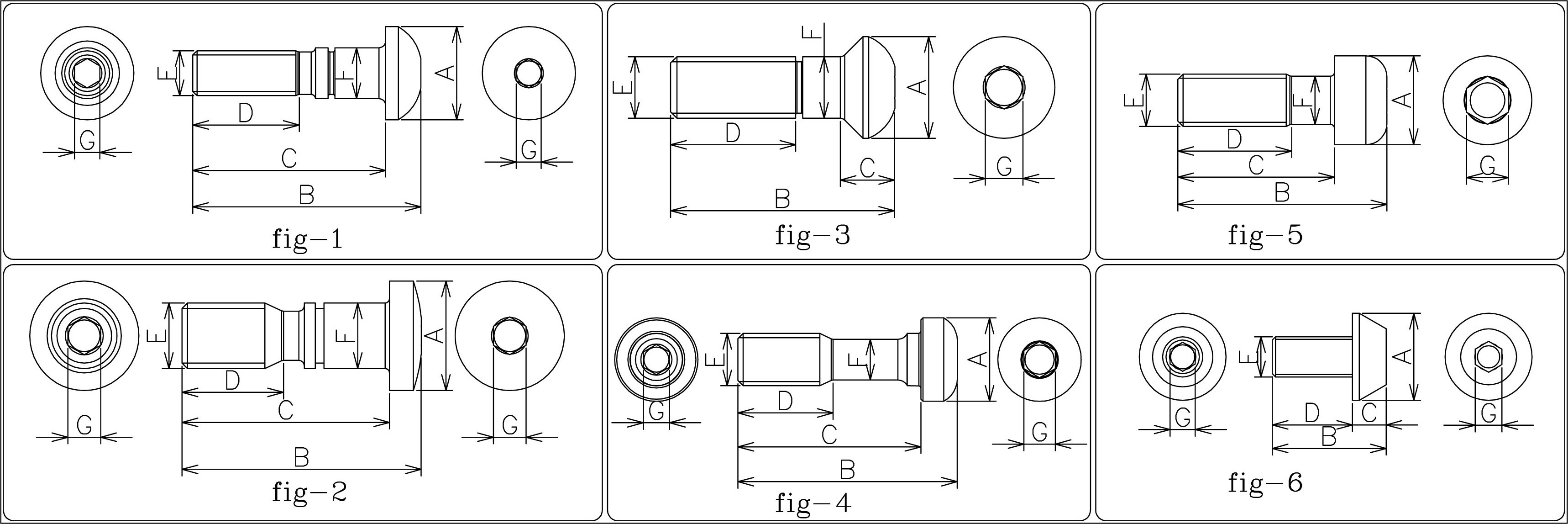

| SL.NO | NAME | A | B | C | D | E | F | G | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | CLS01 | 11.00 | 27.00 | 22.80 | 12.50 | M6 X 1.0 | 6.00 | LH030 | fig-1 |
| 2 | CLS01B | 10.00 | 22.00 | 19.00 | 9.20 | M6 X 1.0 | 6.00 | LH030 | fig-2 |
| 3 | CLS03 | 8.00 | 18.00 | 4.50 | 10.00 | M5 X 0.8 | 4.90 | LH030 | fig-3 |
| 4 | CLS13 | 10.00 | 27.00 | 7.00 | 12.20 | M5 X 0.8 | 5.00 | LH040 | fig-3 |
| 5 | CLS11 | 6.00 | 16.00 | 13.80 | 9.00 | M5 X 0.8 | 3.00 | LH020 / LH025 | fig-4 |
| 6 | CLS05 | 8.00 | 21.00 | 17.50 | 9.00 | M5 X 0.8 | 3.90 | LH030 / LH025 | fig-4 |
| 7 | CLS10 | 10.00 | 26.50 | 22.20 | 13.50 | M6 X 1.0 | 4.90 | LH030 / LH040 | fig-4 |
| 8 | CLS08 | 8.50 | 20.00 | 15.00 | 11.00 | M5 X 0.8 | 4.60 | LH040 | fig-5 |
| 9 | CLS15 | 13.00 | 17.00 | 5.00 | 12.00 | M6 X 0.75 | --- | LH025/LH040 | fig-6 |
