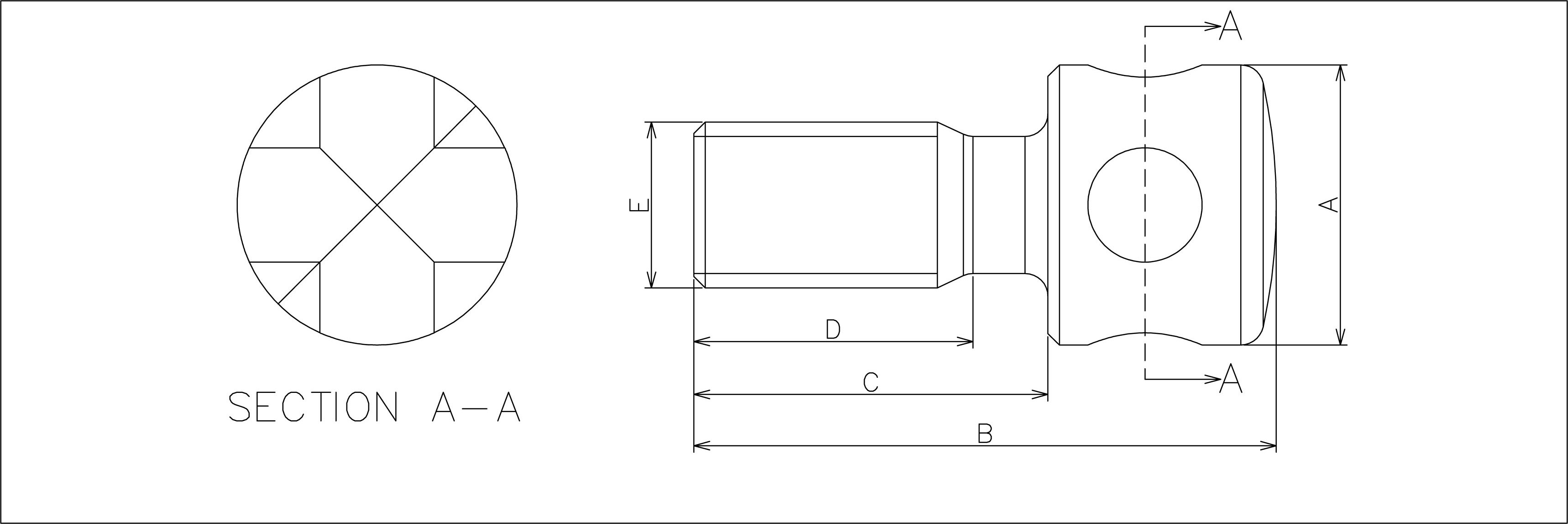

| AXIAL ADJ.SCREW |
|---|
| SL.NO | NAME | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|

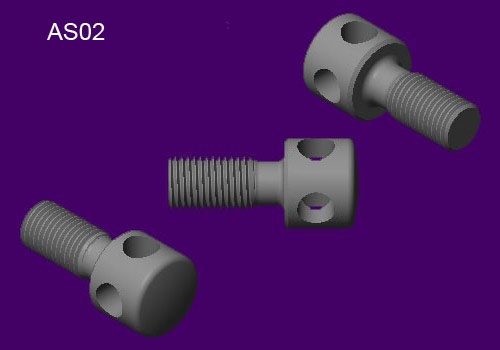

| 1 | AS02 | 4.90 | 10.20 | 6.20 | 4.80 | M3 X 0.5 | --- | --- |

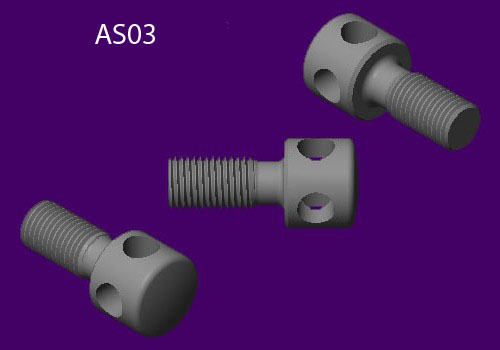

| 2 | AS03 | 6.30 | 12.00 | 7.70 | 6.30 | M4 X 0.7 | --- | --- |

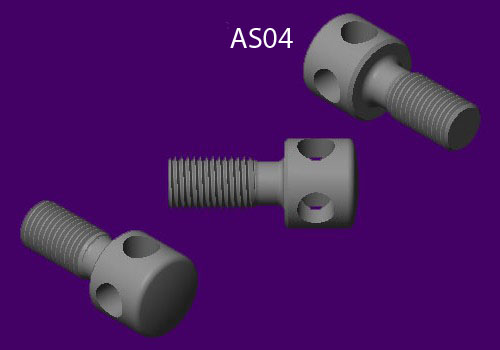

| 3 | AS04 | 8.30 | 14.00 | 8.70 | 7.30 | M5 X 0.8 | ---- | --- |
 |
 |
 |
|---|
